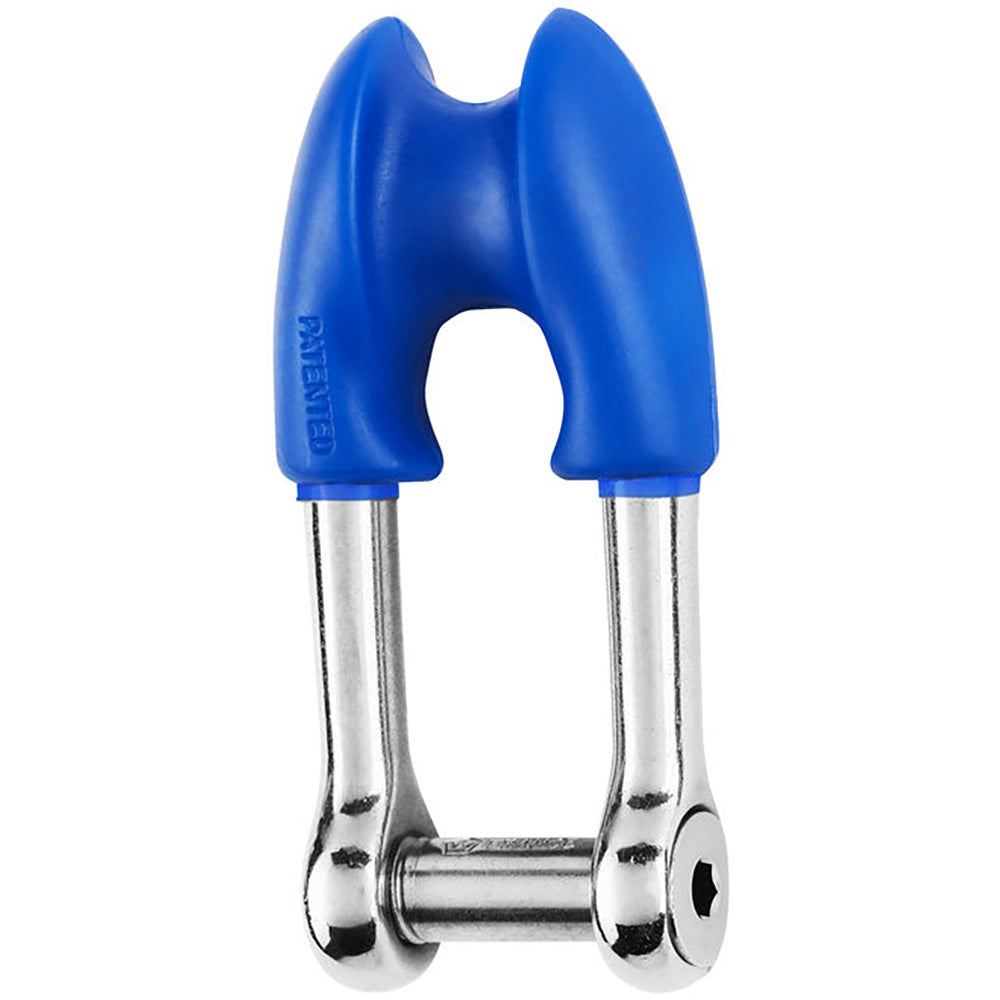

Wichard Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32" [1395W]

Thimble Shackle Allen Head Pin - 10mm Diameter - 13/32"

Features:

• Thimble shackle with allen head pin forged in grade 316L stainless steel
• Allows a rope to be spliced without adding and additional thimble
• With the captive pin, no risk to lose the pin
• Outstanding working and breaking loads

Applications:

• Mainsheet halyards
• Max rope size: 16 mm

Specifications:

• Materials: 316 stainless steel grade
• Working load: (lb) 3350 / (kg) 1520
• Breaking load: (lb) 11020 / (kg) 5000
• Weight: (lb) 0.313 / (g) 142

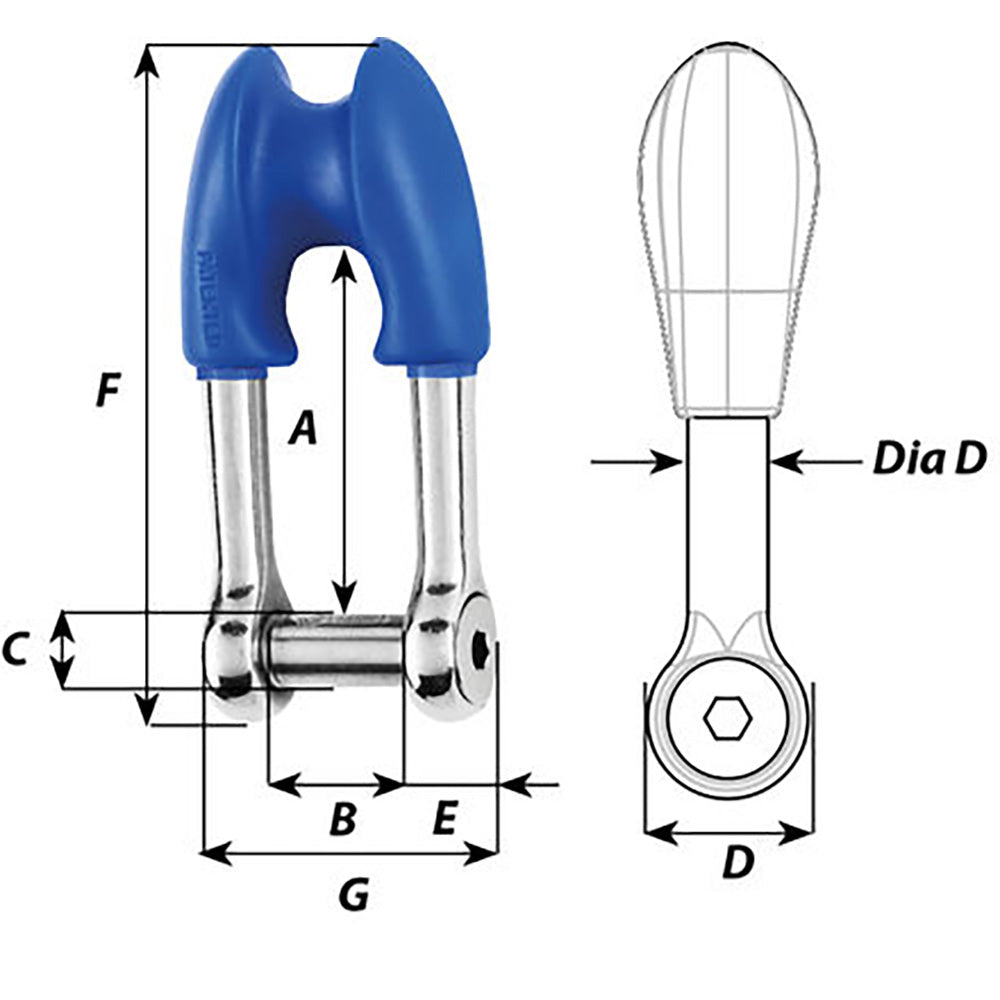

Dimensions:

• A: (inch) 2 1/64" / (mm) 51
• B: (inch) 25/32" / (mm) 20
• C: (inch) 25/64" / (mm) 10
• D: (inch) 25/32" / (mm) 20
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 5/16" / (mm) 8
• F: (inch) 3 25/32" / (mm) 96
• G: (inch) 1 39/64" / (mm) 41

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
