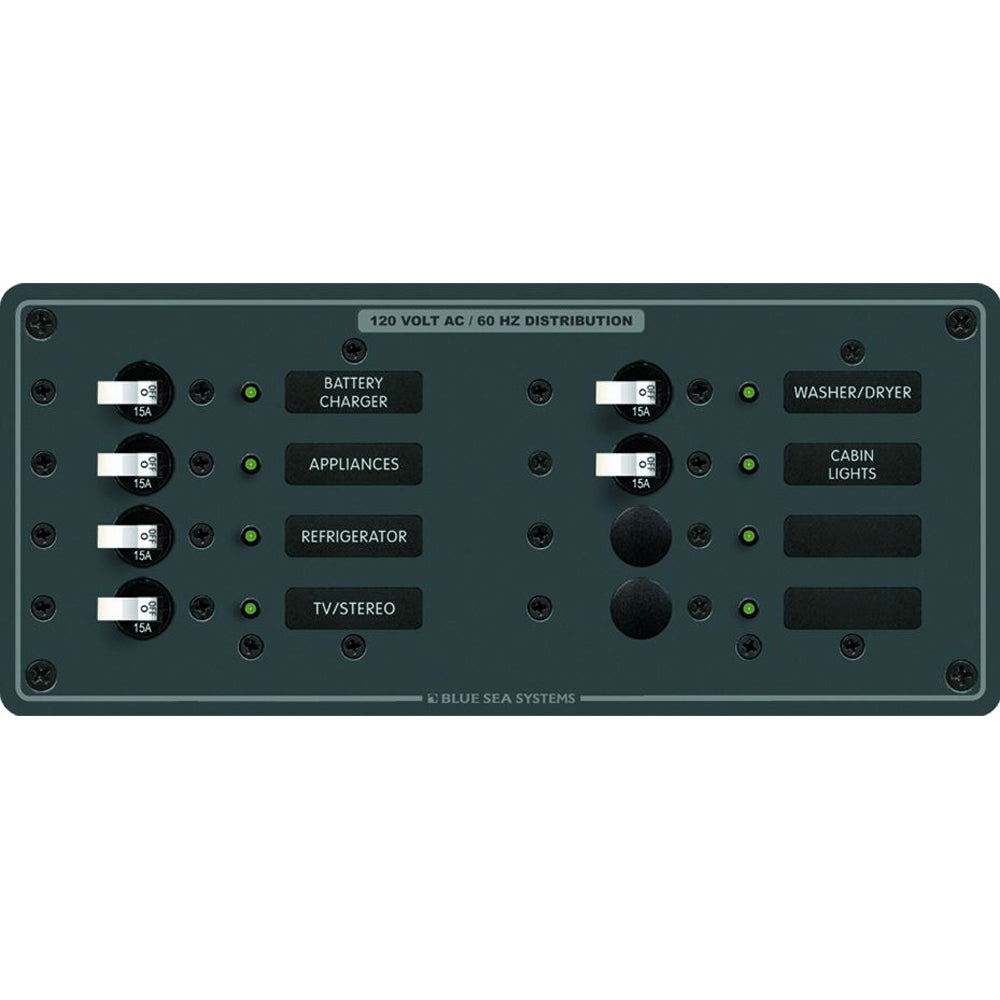

Blue Sea 8411 AC 8 Position [8411]

AC 8 Position

• All hot, neutral, and safety ground buses installed, fully pre-wired
• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• Maximum panel amperage - 100 Amperes

• MIL-C5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Voltage: 120v
• AC/DC: AC
• Max Breaker Quantity: 8
• Box Dimensions: 4"H x 9"W x 12"L WT: 2.85 lbs
• UPC: 632085084110
