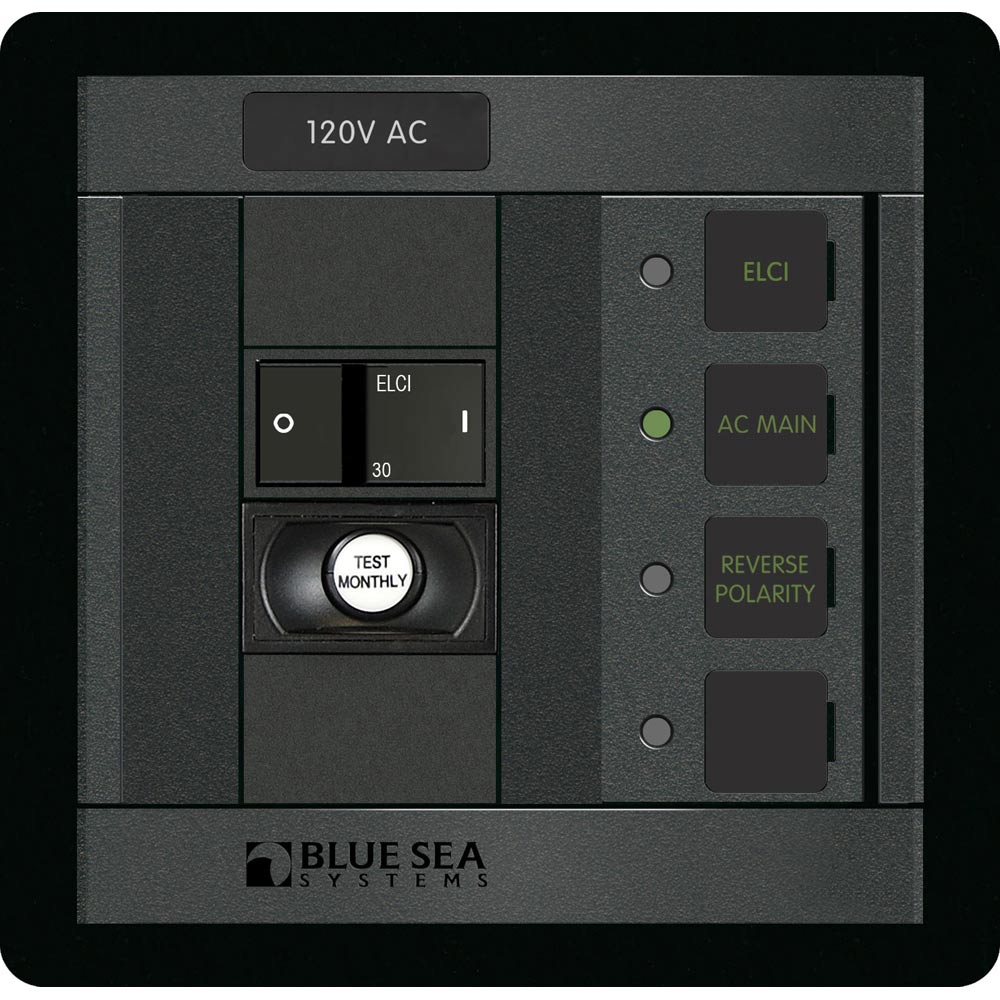

Blue Sea 1502 ELCI Main 30A Double Pole Panel [1502]

ELCI Main 30A Double Pole Panel

Features:

• One 30A AC ELCI Main Residual Current Circuit Breaker, leakage trip amperate - 30 mA

• ELCI provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection

• Red " Reverse Polarity" LED

• All circuit label positions are backlit

• "ON" indicating LEDs

• Positions: 1

• Nominal Voltage: 120V AC

• Height: 4.75" (120.65mm)

• Width: 4.88" (123.95mm)

• Depth: 3.00" (76.2mm)

• Weight: 1.10lb (0.5kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• AC/DC: AC
• Box Dimensions: 6"H x 7"W x 9"L WT: 1.44 lbs
• UPC: 632085015022
