Aquatic AV AD1200.4 4-Channel Amplifier [AD124]
$399.00
Skip to product information
Owner's Manual (pdf)
Brochure (pdf)
Aquatic AV AD1200.4 4-Channel Amplifier [AD124]
$399.00

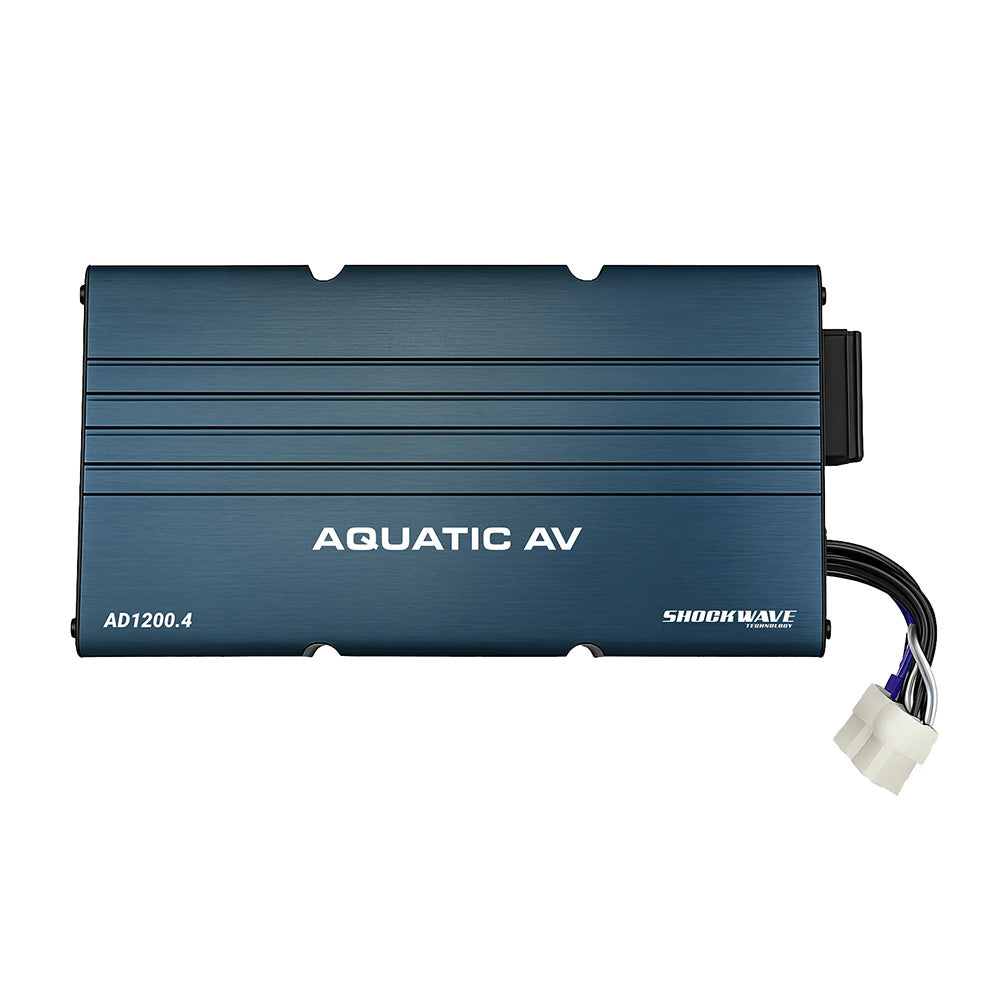

AD1200.4 4-Channel Amplifier
Designed for the harshest conditions, this Class D digital amplifier delivers high-performance power with a compact footprint, making it the perfect choice for marine, powersports, and multi-environment applications.
Specifications:
- Environmental Protection: IP65 Rating
- Power Output (Max) @ 4 Ohms: 760W (4x 190W)
- Power Output (Max) @ 2 Ohms: 1,200W (4x 300W)
- RMS @ 4 Ohm (Bridged): 4x 520W
- Frequency Response: 20Hz - 20kHz
- Signal-to-Noise Ratio: 90dB
- THD: ≤0.5%
- Input Sensitivity: 12V - 0.2V
- Best Efficiency: >80%
- Minimum Load: 2 Ohm
- Current Draw: 103A
- Overload Protection System: Yes
- Overheat Protection Temperature: 75°C
- Operating Voltage: 9V - 16V DC
Owner's Manual (pdf)
Brochure (pdf)
We make things that work better and last longer. Our products solve real problems with clean design and honest materials.
