Bilge Pump Float Switch Selection and Wiring

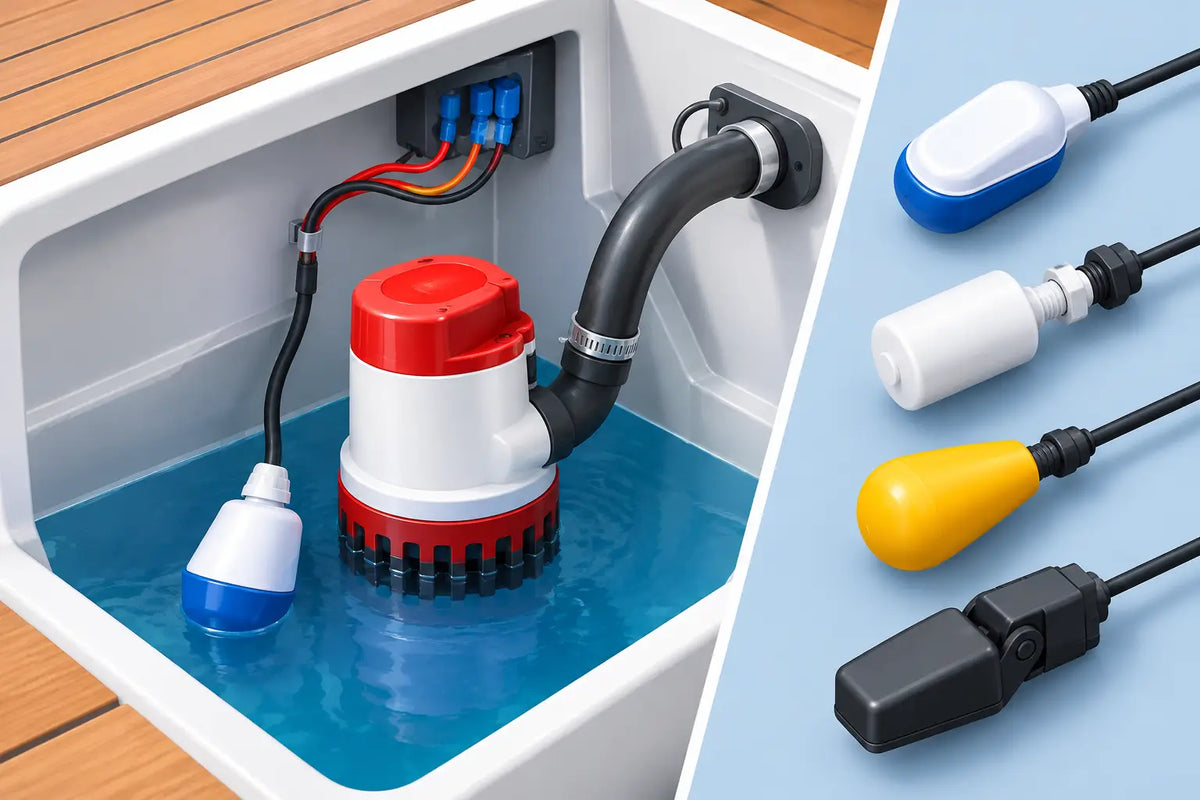

A bilge pump float switch is a small component with a large job: it starts the automatic bilge pump before accumulated water becomes a stability, corrosion, or safety problem. It must operate in a wet, dirty, confined area, often while the boat is unattended and shore power is disconnected. Selecting the correct switch and wiring it on a protected automatic circuit matters as much as choosing the pump itself.

For a replacement, start with the existing pump's voltage, current draw, discharge arrangement, and available space in the bilge. A float switch is not a universal part simply because it fits near the pump. Its electrical rating, activation height, mounting method, and resistance to debris determine whether it will work reliably in that location.

What a Bilge Pump Float Switch Does

A conventional float switch uses a buoyant arm or enclosed float to close an electrical circuit as water rises. The closed circuit energizes the pump. When the water level drops, the float returns to its resting position and the pump shuts off. Most mechanical models are designed to work with 12V DC bilge pumps, though 24V and higher-capacity systems are also common on larger vessels.

The switch is generally part of the automatic side of the bilge-pump circuit. A helm-mounted manual or automatic panel switch can still allow the operator to run the pump manually, but the automatic function should remain available when the boat is unattended. That means the automatic feed is typically connected to battery power through proper overcurrent protection, not dependent on the main battery switch being on.

This arrangement varies by boat and panel design. Follow the pump manufacturer, switch manufacturer, ABYC guidance, and vessel wiring diagram when replacing components. If the existing wiring is corroded, undersized, or difficult to identify, correcting the circuit is preferable to installing a new float switch on a questionable connection.

Match the Switch to the Pump and Bilge

The first specification is electrical capacity. Check the pump's stated running current and the float switch's amp rating. A switch should be rated for the load it will control, with appropriate allowance for motor startup current where specified by the manufacturer. Do not assume that a small-looking bilge pump draws little current, especially when replacing a switch on a high-output centrifugal pump.

Voltage must also match the system. A 12V DC float switch belongs on a 12V system; 24V equipment requires components rated for 24V DC. AC bilge-pump arrangements and commercial systems may need different controls entirely. When a pump load exceeds the switch rating, a properly designed relay arrangement may be required rather than using an undersized switch as the direct control.

Physical fit is the next consideration. Measure the bilge floor, pump base, hose path, stringers, limber holes, and clearance below the engine or deck. A pivoting float needs room for its full travel. If the arm contacts the hull, hose, wiring, or pump housing, it may stick in the off position or run continuously. Either failure is unacceptable.

A separate float switch is common where the pump and control can be positioned independently. Integrated automatic pumps combine the pump and water sensor in one assembly. Integrated units reduce loose components and can simplify replacement, but they may be less convenient when only the sensor or pump motor fails. Separate switches offer more flexibility in pump selection and placement, provided the mounting area is clean and accessible.

Mechanical Floats and Electronic Water Sensors

Mechanical float switches are familiar, simple, and widely available. Many use a hinged arm with an internal sealed switch. Their principal weakness is fouling: oil residue, hair, fishing line, leaves, mud, loose fasteners, and other bilge debris can prevent free movement.

Electronic sensors detect water without a moving float arm. They can be useful in tight bilges or locations where debris frequently interferes with mechanical floats. However, they still require inspection. Some electronic sensors can be affected by contamination, and many consume a small standby current. On boats stored for long periods without charging, that parasitic draw should be part of the battery-maintenance plan.

The right choice depends on the bilge. A clean, open bilge with adequate clearance is well suited to a mechanical float. A narrow or irregular sump may favor a compact electronic sensor or an integrated automatic pump. Neither design eliminates routine checks.

Bilge Pump Float Switch Wiring Basics

A reliable automatic circuit needs marine-grade wire, correctly sized circuit protection, secure terminals, and protected routing. Use tinned copper marine wire appropriate for the circuit load and length. Make connections with quality crimp terminals and adhesive-lined heat-shrink insulation where suitable. Keep splices above the normal bilge-water level whenever the installation allows.

The automatic positive feed should be fused or protected according to the pump manufacturer's instructions and located as close to the power source as practical. A fuse that is too large may not protect the wire or equipment during a fault. A fuse that is too small may open during normal pump startup. Do not select fuse size by guesswork.

Many installations use a three-position panel control marked Manual, Off, and Auto. In a common arrangement, the manual position powers the pump directly, while the automatic position allows the float switch to control the pump. The exact terminal layout differs among switches and pumps, so identify each wire by function rather than matching colors alone. Previous owners, installers, and aftermarket repairs often change color conventions.

Keep all wiring supported and away from sharp edges, hot exhaust components, moving machinery, and areas where stored gear can pull on the conductors. Leave enough service loop to remove the pump or switch for cleaning, but not enough loose wire for the float arm to catch. Confirm that the discharge hose rises correctly, is clamped where required, and is not kinked. A properly wired switch cannot compensate for a blocked hose or failed check valve.

Installation Checks Before You Close the Hatch

After mounting the switch and completing the wiring, test both automatic and manual operation. Do not rely only on lifting the float by hand. Add clean water to the bilge or sump until the switch activates, then verify that the pump discharges water overboard. Continue observing until the water level falls and the pump shuts off.

Watch the float through its full range. It should not contact the pump body, hose, hull structure, wire bundle, or debris screen. The pump should not cycle excessively because the switch is mounted too close to its activation point or because discharged water flows back into the bilge. A short cycle may signal a plumbing issue, an incorrectly placed check valve, or a pump that leaves more residual water than expected.

If the pump runs but does not move water, inspect the intake, hose, thru-hull discharge, and any check valve. If the switch does not activate, check battery voltage, fuse condition, terminal integrity, ground connection, and float movement. If the pump runs continuously, disconnect power before troubleshooting. A jammed float, wet or damaged wiring, or incorrectly connected manual lead can keep the circuit energized.

Inspection and Replacement Intervals

A bilge area changes quickly. During regular boat checks, clear debris around the pump and switch, inspect hose clamps and wiring, and test the automatic cycle. Test more frequently on boats kept in the water, vessels exposed to heavy rain, and boats with leaking stuffing boxes, livewell plumbing, air-conditioning drains, or other regular sources of bilge water.

Replace a float switch when its motion is sticky, its housing is cracked, its wires are damaged, or it fails a repeatable water test. Also replace it if it has been submerged beyond its design, heavily contaminated by fuel or oil, or involved in an electrical fault. Cleaning can restore operation when debris is the problem, but it is not a repair for worn contacts or compromised insulation.

When sourcing a replacement through Boat Parts 'N More, compare voltage, switch amp rating, mounting footprint, lead length, and float travel with the removed component. If the old part number is available, use it as a reference, then confirm the specifications against the current pump and wiring arrangement.

A dry bilge is not proof that the automatic pump system is ready. The useful test is simple: add water, watch the float rise, verify discharge, and make sure the pump shuts down afterward. Make that check part of pre-launch and routine dockside maintenance, and the float switch can do the quiet work it was installed to do.
